Innovative and Advanced Planetary Mixer with degassing function

Planetary mixer with degassing function can achieve optimization generated process for various materials.

The Revolution-Rotation Motion Mixer & Degassing System"Kakuhunter" evolves following recent needs, besides, we also have been leading the market over supplying products with numerous variation. From now on, we will keep creating new value with our individual technology.

We effectively solve problem for mixing and degassing on other methods.

Kakuhunter is capable to accommodate mixing and degassing for various material regardless of any viscosity.

Machine as well as container is operating into enclosed space, therefore no need for interfusion of foreign substances, it can operates continuous job over replacing materials. Shearing and defoaming action for film thickness foaming function which creates under revolution-rotation combination, it is possible to do accurate mixing and degassing simultaneously with short time.

Depending on setting function of combination of revolution and rotation speed, it can be flexible for variable motion setting in accordance with material feature or kinds, then it can achieve appropriate mixing and degassing short time.

Applicable to motion mixing and degassing of various kinds of materials for wide range of uses across a variety of industrial fields.

Keywords: #mixing, #degassing, #dispersion, #crushing, #kneading, #separation, #emulsification, #revolution, #rotation

Principal capability of Kakuhunter

MIXING

DEGASSING

DISPERSION

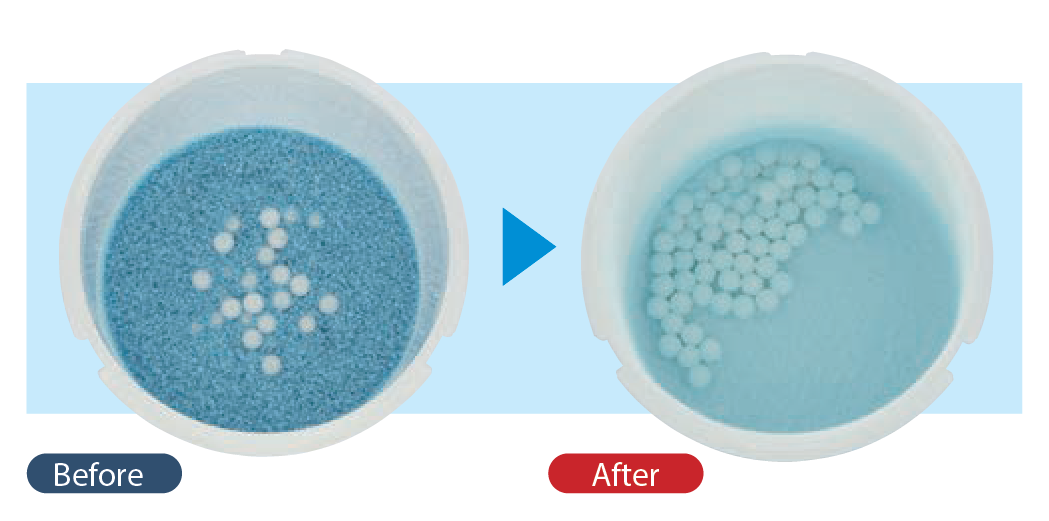

CRUSHING

KNEADING

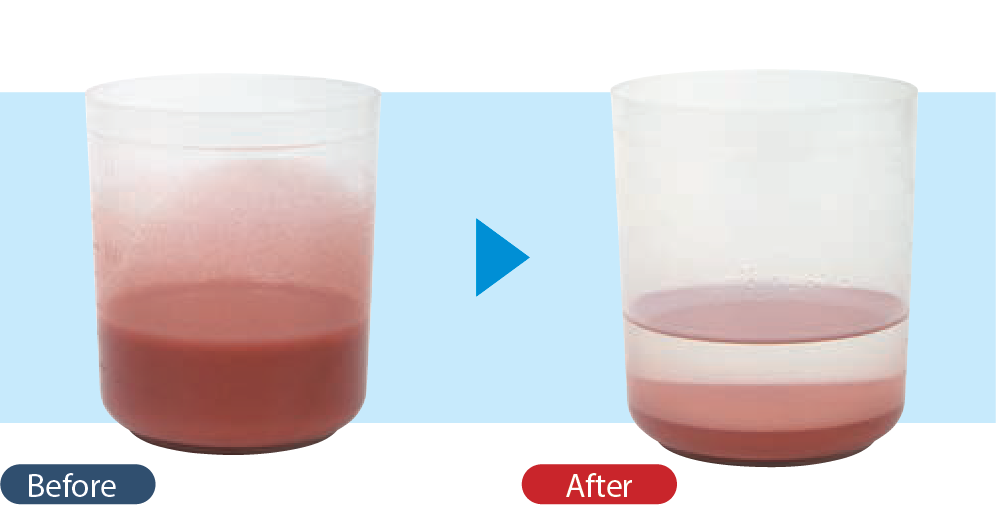

SEPARATION

EMULSIFICATION

Disadvantage of Other Method (Mixing)

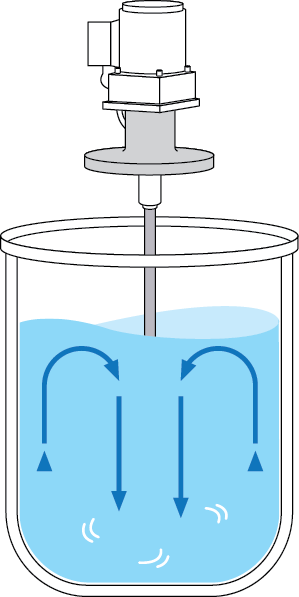

Propeller Type
• It takes time to mix.
• Propeller part contacts the material, thus causing loss of material.
• Propeller shears composition, thus causing damage of material.
• Accurate mixing is unable.
• Need to clean up.
• Degassing is unable.

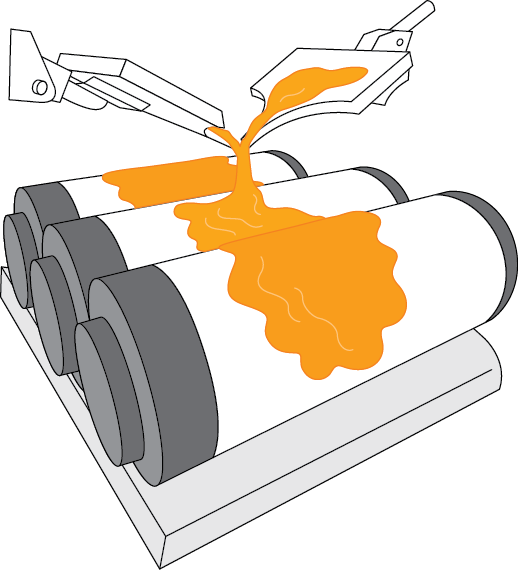

The Three Roll Type

• It takes time to mix.
• Roll part contacts the material, thus causing loss of material.
• It is unsuitable for low viscosity material.
• Need to clean up.
• It can be dangerous for getting involved with roller.

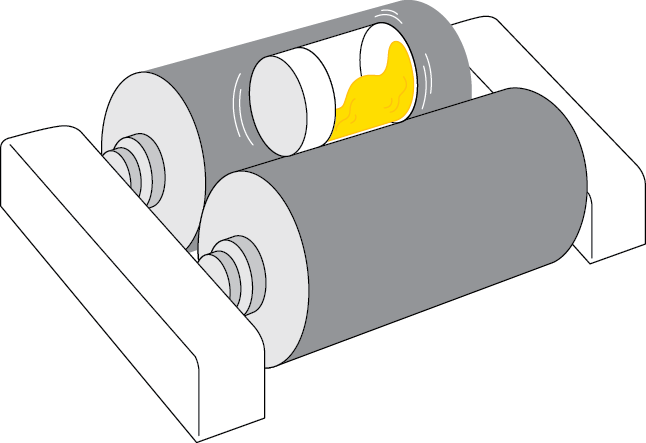

The Roller Type

• It takes time to mix.
• Air bubbles may be generated at the time of mixing, and separation or sedimentation may occur due to materials made ahead of time.
• It is unsuitable for high viscosity material.

Disadvantage of Other Method (Degassing)

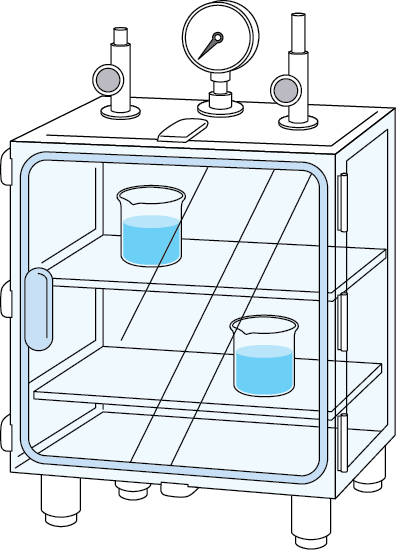

Vacuum Degassing Machine

• Unable to mix.
• Fluid level is raising so that it can be spilled out.
• It takes time to mix on high viscosity material and would be hard to degas on bottom part.
• It takes time to degas, therefore operating efficiency is not good.
• It vaporized, then eventually decreased quantity.
• Composition can be changed depending on material.

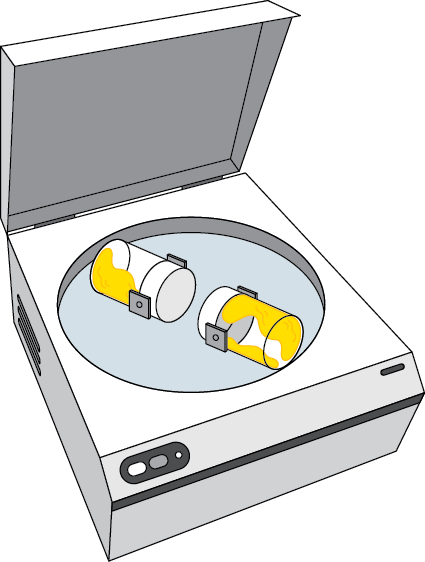

Centrifugal Separator

• Unable to mix.
• In case of material with difference of specific gravity, it split out.
• In case of high viscosity material, it remain slight bubble.
• Processing quantity is small.

With centrifugal force by revolution move, material was grinding sidewall of container, then it can create mixing function with shearing force between container sidewall and material by rotation move.

Advanced Technology

Revolution-Rotation Individual Control System
Due to ratio change setup function of revolution speed and rotation speed, it is capable to operate with appropriate mixing and degassing in accordance with material feature for short time.

Fixed ratio for revolution-rotation
Rotation follows with fixed ratio of revolution

Step Mode
Enable to correspond for various demands of mixing and degassing by continuous driving with several different operational patterns.

Vacuum Reduced Pressure Function
The vacuum reduced pressure function enables removal of ultrafine bubbles.

Container Tray Shift
Mixing force enhanced by shifting the container tray for the rotation axis and increasing the contact area between the container and the material.

Download Product Sheet

Kakuhunter Planetary Mixer Brochure
